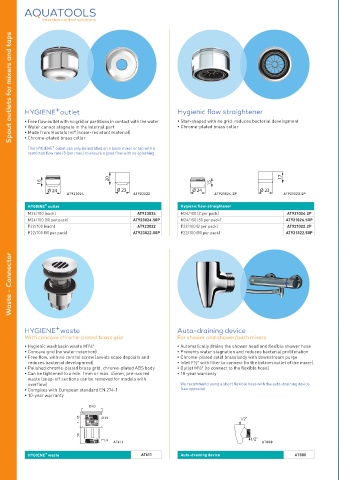

Page 2 - Essentials

Spout outlets for mixers and taps

+
HYGIENE outlet Hygienic flow straightener
• Free flow outlet with no grid or partitions in contact with the water • Star-shaped with no grid: reduces bacterial development
• Water cannot stagnate in the internal part • Chrome-plated brass collar
®
• Made from Hostaform (scale-resistant material)
• Chrome-plated brass collar

+
This HYGIENE outlet can only be installed on a basin mixer or tap with a
restricted flow rate (5 lpm max.) to ensure a good flow with no splashing.

20 17
16 15
Ø 24 Ø 23 Ø 24 Ø 23
AT923024 AT923022 AT921024.2P AT921022.2P
+
HYGIENE outlet Hygienic flow-straightener
M24/100 (each) AT923024 M24/100 (2 per pack) AT921024.2P
M24/100 (50 per pack) AT923024.50P M24/100 (50 per pack) AT921024.50P
F22/100 (each) AT923022 F22/100 (2 per pack) AT921022.2P
F22/100 (50 per pack) AT923022.50P F22/100 (50 per pack) AT921022.50P

Waste - Connector

+
HYGIENE waste Auto-draining device
With concave chrome-plated brass grid For shower and shower/bath mixers
• Hygienic washbasin waste M1¼" • Automatically drains the shower head and flexible shower hose
• Concave grid (no water retention) • Prevents water stagnation and reduces bacterial proliferation
• Free flow, with no central screw (avoids scale deposits and • Chrome-plated solid brass body with downstream purge
reduces bacterial development) • Inlet F½" with filter to connect (to the bottom outlet of the mixer)
• Polished chrome-plated brass grid, chrome-plated ABS body • Outlet M½" (to connect to the flexible hose)
• Can be tightened to a min. 1mm or max. 45mm, pre-scored • 10-year warranty
waste (snap-off sections can be removed for models with
overflow) We recommend using a short flexible hose with the auto-draining device
• Complies with European standard EN 274-1 (see opposite).
• 10-year warranty
Ø 63

1 - 45 Ø 39 1/2"

50
1"1/4 1/2"
AT611 AT880
+
HYGIENE waste AT611 Auto-draining device AT880
