FILT’RAY 2-month tap filter

Ref. AT030719
Sterile
FILT’RAY 2-month tap filter

Presentation

DESCRIPTION

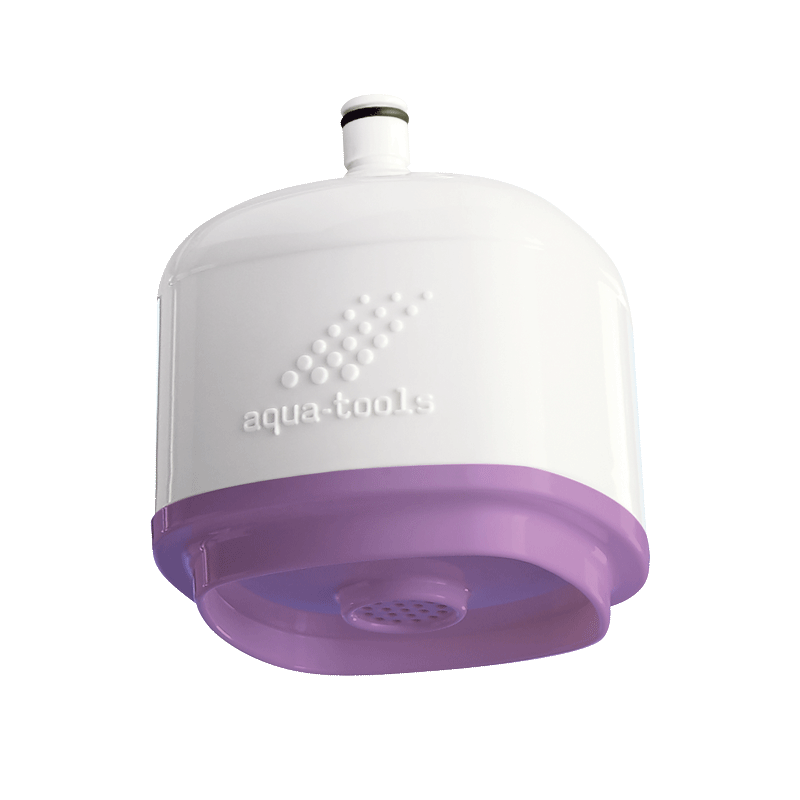

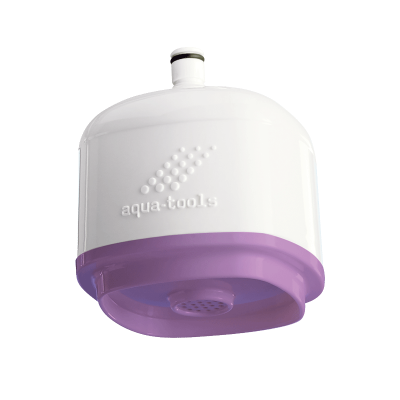

FILT’RAY 2-month tap filter

Ref. AT030719
AQUATOOLS anti-Legionella and all-germ tap filter, laminar flow.
Device made from MBS.
Membrane type: tubular microfiltration.
Membrane made from polyethylene.
Pore cut-off threshold: 0.1μm nominal and 0.2μm absolute sterilising grade.
Filtration flow rate: 6.3 lpm at 3 bar and 2.2 lpm at 1 bar
(filter only, excludes any flow rate restriction in the shower).
Maximum upstream pressure at the point-of-use: 5 bar.
Maximum lifespan: 2 months from installation.
Resistance to thermal shocks: 70°C for 30 minutes.
Resistance to chemical shocks: active chlorine levels up to 100 ppm
for 2 hours (cumulative total).
Sterile filter.
FILT’RAY 2G sterile disposable water filters are:
CE marked Class I Medical Devices in Europe that comply with directive 93/42/CEE;
Class II Medical Devices in the U.S.A. with FDA-510(K) clearance;
Class I Medical Devices in Canada that comply with SOR/98-282.
Packaged in boxes of 10, each filter is individually wrapped and sterile.

ADVANTAGES

Anti-Legionella and all-germ

Lifespan: 2 months from installation

Bubl'air Wash

Bubl'air Wash: longer filter life

Maintenance aisée - Installation aisée

Rapid installation with no tools required

Characteristics

TECHNICAL CHARACTERISTICS

FILT’RAY 2-month tap filter

Ref. AT030719
Technology Point-of-use filtration

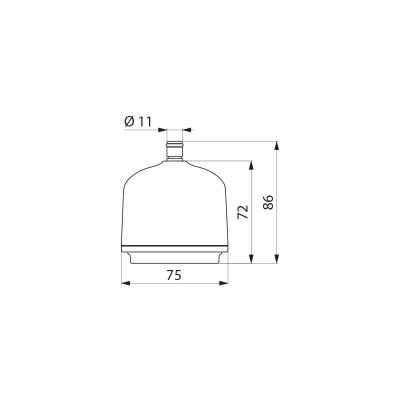

Height 72mm
Length 75mm
Flow rate 6.3 lpm at 3 bar, 2.2 lpm at 1 bar
Lifespan 2 months
Certificates ACS Logo CE Logo WRAS

Downloads

DOWNLOADS

FILT’RAY 2-month tap filter

Ref. AT030719

To download one or several documents linked to this product, please select the type of file you require :

VARIANTS

AT030720 Shower flow
AT030722 Shower flow - Non-sterile
AT030721 Laminar flow - Non-sterile

VARIANTS

AT030720 Shower flow
AT030722 Shower flow - Non-sterile
AT030721 Laminar flow - Non-sterile
