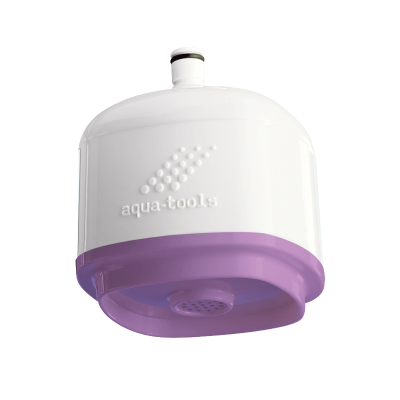

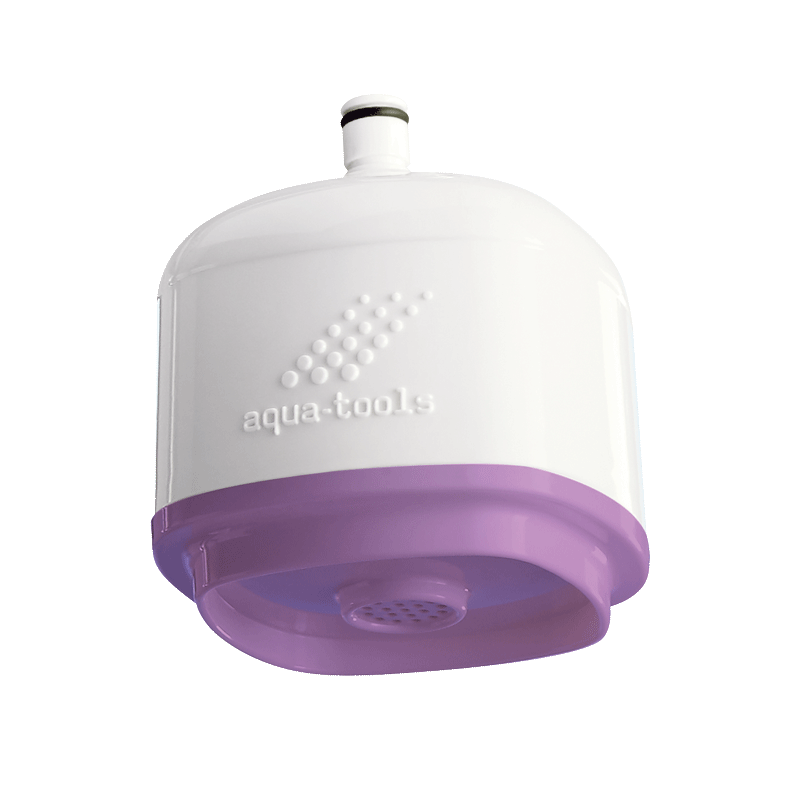

FILT’RAY 3-month tap filter

Ref. AT030729
Non-sterile
FILT’RAY 3-month tap filter

Presentation

DESCRIPTION

FILT’RAY 3-month tap filter

Ref. AT030729
AQUATOOLS anti-Legionella and all-germ tap filter.
Device made from MBS.
Membrane type: tubular microfiltration.
Membrane made from polyethylene.
Pore cut-off threshold: 0.1μm nominal and 0.2μm absolute sterilising grade.
Filtration flow rate: 6.3 lpm at 3 bar and 2.2 lpm at 1 bar
(filter only, excludes any flow rate restriction in the tap).
Maximum upstream pressure at the point-of-use: 5 bar.
Maximum lifespan: 3 months from installation.
Withstands thermal shocks: 70°C for 30 minutes.
Withstands chemical shocks: active chlorine levels up to 100 ppm
for 3 hours (cumulative total).
Non-sterile filter.
CE marked Class I medical device.
Packaged in boxes of 10.

ADVANTAGES

Anti-Legionella and all-germ

Lifespan: 3 months from installation

Bubl'air Wash

Bubl'air Wash: longer filter life

Maintenance aisée - Installation aisée

Rapid installation with no tools required

Characteristics

TECHNICAL CHARACTERISTICS

FILT’RAY 3-month tap filter

Ref. AT030729
Technology Point-of-use filtration

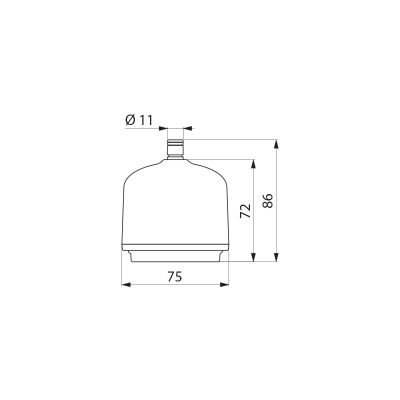

Height 72mm
Length 75mm
Flow rate 6.3 lpm at 3 bar, 2.2 lpm at 1 bar
Lifespan 3 months
Certificates ACS Logo CE Logo WRAS

Downloads

DOWNLOADS

FILT’RAY 3-month tap filter

Ref. AT030729

To download one or several documents linked to this product, please select the type of file you require :

VARIANTS

AT030747 Laminar flow
AT030748 Shower flow
AT030739 Shower flow - Non-sterile

VARIANTS

AT030747 Laminar flow
AT030748 Shower flow
AT030739 Shower flow - Non-sterile
