DESCRIPTION

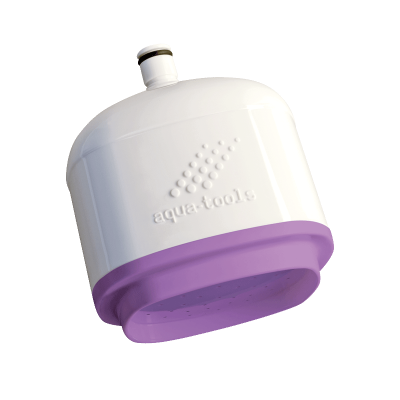

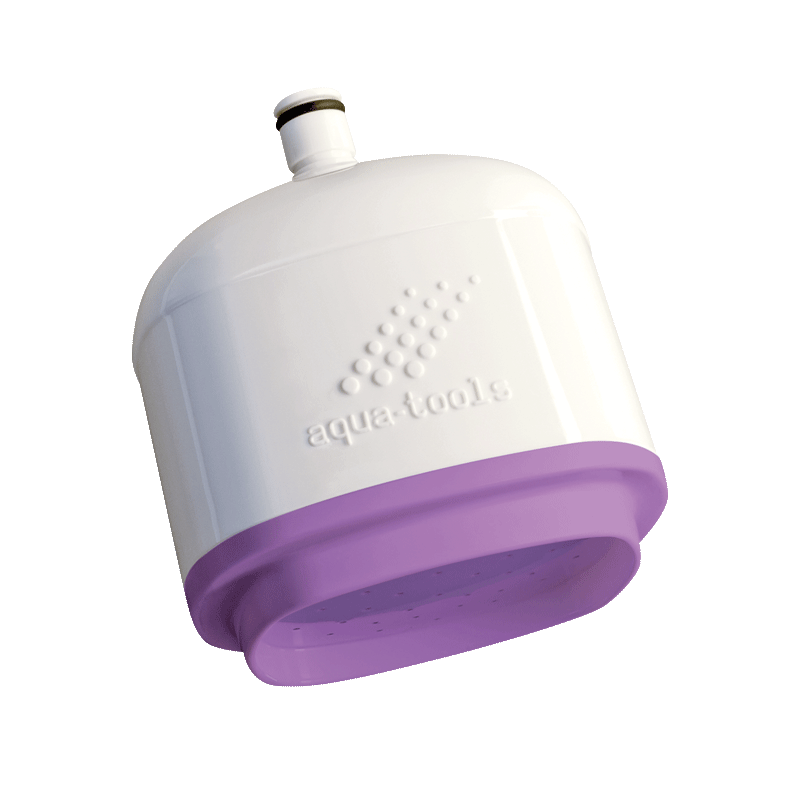

FILT’RAY tap filter, 4-months
Ref. AT030740AQUATOOLS anti-Legionella and all-germ tap filter.
Device made from MBS.
Membrane type: tubular microfiltration.
Membrane made from polyethylene.
Pore cut-off threshold: 0.1μm nominal and 0.2μm absolute sterilising grade.
Filtration flow rate: 6.3 lpm at 3 bar and 2.2 lpm at 1 bar
(filter only, excludes any flow rate restriction in the tap).
Maximum upstream pressure at the point-of-use: 5 bar.
Maximum lifespan: 4 months from installation.
Withstands thermal shocks: 70°C for 30 minutes.
Withstands chemical shocks: active chlorine levels up to 100 ppm
for 4 hours (cumulative total).
Non-sterile filter.
CE marked Class I medical device.
Packaged in boxes of 10.
Device made from MBS.
Membrane type: tubular microfiltration.
Membrane made from polyethylene.
Pore cut-off threshold: 0.1μm nominal and 0.2μm absolute sterilising grade.
Filtration flow rate: 6.3 lpm at 3 bar and 2.2 lpm at 1 bar
(filter only, excludes any flow rate restriction in the tap).
Maximum upstream pressure at the point-of-use: 5 bar.
Maximum lifespan: 4 months from installation.
Withstands thermal shocks: 70°C for 30 minutes.
Withstands chemical shocks: active chlorine levels up to 100 ppm
for 4 hours (cumulative total).
Non-sterile filter.
CE marked Class I medical device.
Packaged in boxes of 10.
ADVANTAGES
Anti-Legionella and all-germ
Lifespan 4 months from installation
Bubl'air Wash: longer filter life
Rapid installation with no tools required
TECHNICAL CHARACTERISTICS
FILT’RAY tap filter, 4-months
Ref. AT030740Technology | Point-of-use filtration |

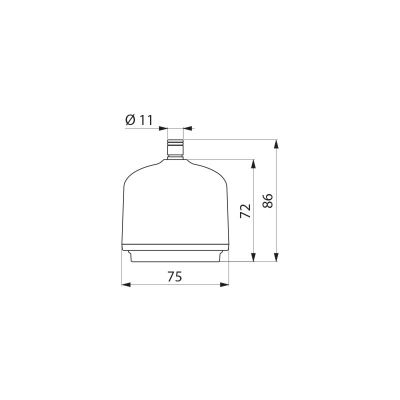

Height | 72mm |
Length | 75mm |
Flow rate | 6.3 lpm at 3 bar and 2.2 lpm at 1 bar |
Lifespan | 4 months |
Certificates |
VARIANTS
AT030750 | Shower flow | |
---|---|---|
AT030749 | Laminar flow | |
AT030730 | Laminar flow - Non-sterile |
VARIANTS
AT030750 | Shower flow | |
---|---|---|
AT030749 | Laminar flow | |
AT030730 | Laminar flow - Non-sterile |
