Hygienic waste without water level

Ref. AT621W
Waste without water level, with membrane
Contact us
Hygienic waste without water level

Presentation

DESCRIPTION

Hygienic waste without water level

Ref. AT621W

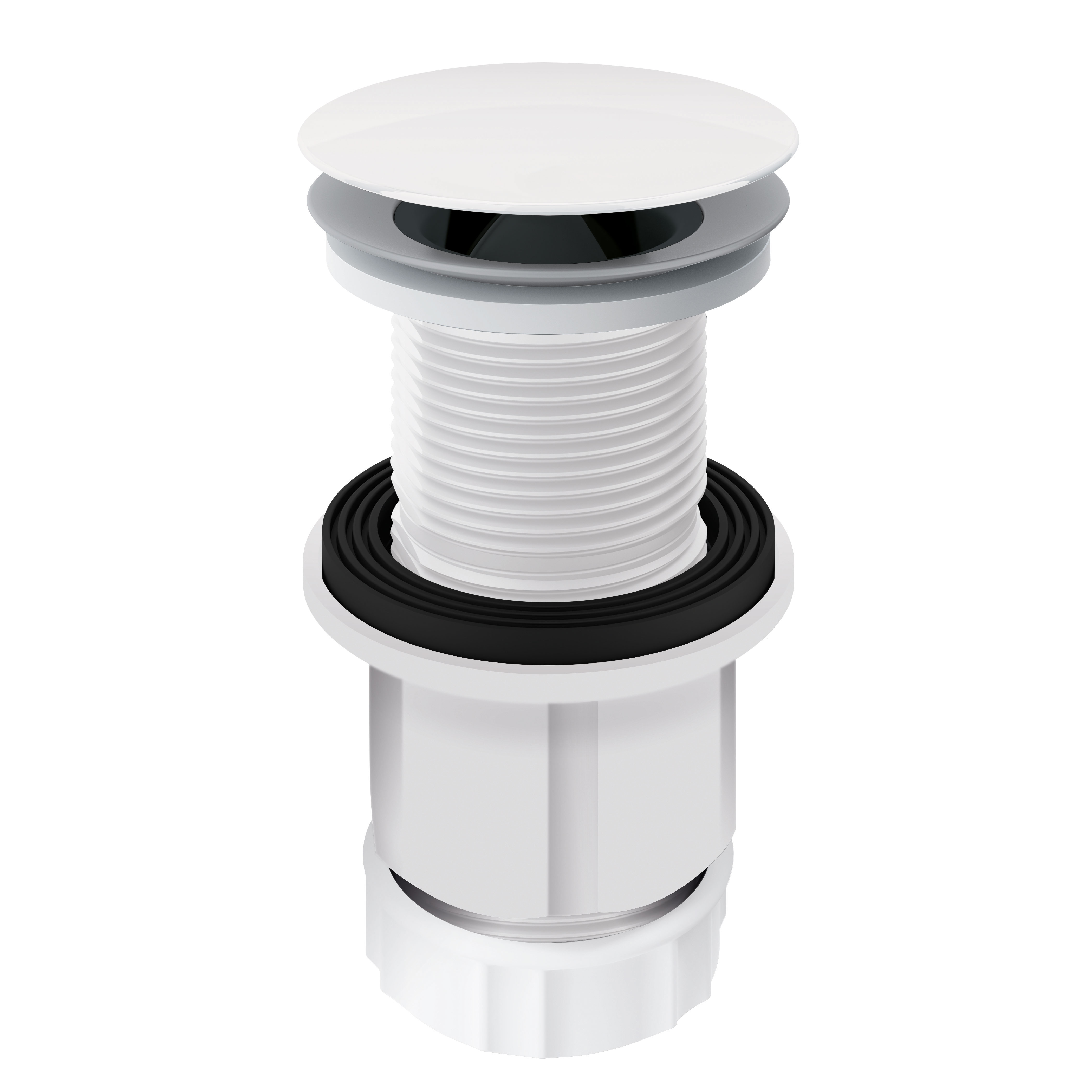

Water-free waste M1 1/4".
Waste with a membrane to prevent bad smells.

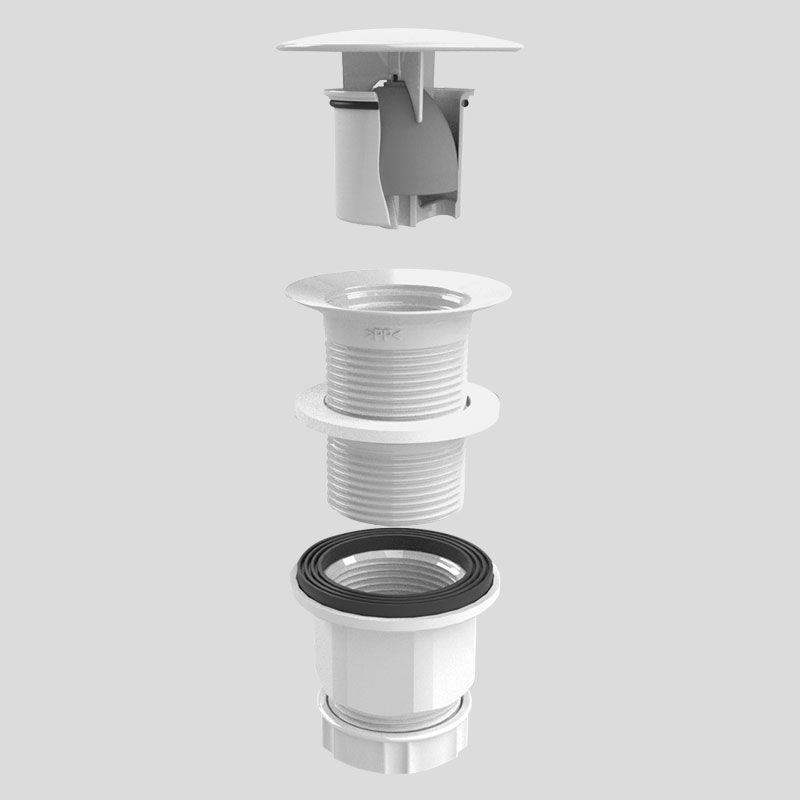

No water level: dome with a cup with a membrane which can be removed from above.
Membrane can be cleaned and replaced.
Dome, cup and body made from white polypropylene. Membrane made from silicone.
Evacuation flow rate complies with European standard EN 274: 36 lpm.
Waste can be cut to size.
Not suitable for washbasins with an overflow.

ADVANTAGES

Maximum hygiene: no water level

Encombrement

Requires minimal space underneath the basin

Maintenance aisée - Installation aisée

Easy to maintain: dome can be removed easily

Characteristics

TECHNICAL CHARACTERISTICS

Hygienic waste without water level

Ref. AT621W
Connector 1 1/4"
Flow rate complies with European standard EN 274: 36 lpm
Diameter 65mm
Finish Dome, cup and body made from white polypropylen. Membrane madre from silicone.
Hygienic waste without water level
Ref. AT621W

Downloads

DOWNLOADS

Hygienic waste without water level

Ref. AT621W

To download one or several documents linked to this product, please select the type of file you require :
