FILT’RAY 2G 3 month shower filter

Ref. AT030714
Sterile
FILT’RAY 2G 3 month shower filter

Presentation

DESCRIPTION

FILT’RAY 2G 3 month shower filter

Ref. AT030714
AQUATOOLS anti-Legionella and all-germ shower filter.
Device made from MBS.
Membrane type: tubular microfiltration.
Membrane made from polyethylene.
Pore cut-off threshold: 0.1μm nominal and 0.2μm absolute sterilising grade.
Filtration flow rate: 11.9 lpm at 3 bar and 4.5 lpm at 1 bar (filter only, excludes any flow rate restriction in the shower valve).
Maximum upstream pressure at the point-of-use: 5 bar.
Maximum lifespan: 3 months from installation.
Withstands thermal shocks: 70°C for 30 minutes.
Withstands chemical shocks: active chlorine levels up to 100 ppm
for 3 hours (cumulative total).
Sterile filter.
FILT’RAY 2G sterile disposable water filters are:
CE marked Class Is Medical Devices in Europe that comply with directive 93/42/CEE;
Class II Medical Devices in the U.S.A. with FDA-510(K) clearance;
Class I Medical Devices in Canada that comply with SOR/98-282.
Packaged in boxes of 10, each filter is individually wrapped and sterile.

ADVANTAGES

Anti-Legionella and all-germ

Lifespan: 3 months from installation

Maintenance aisée - Installation aisée

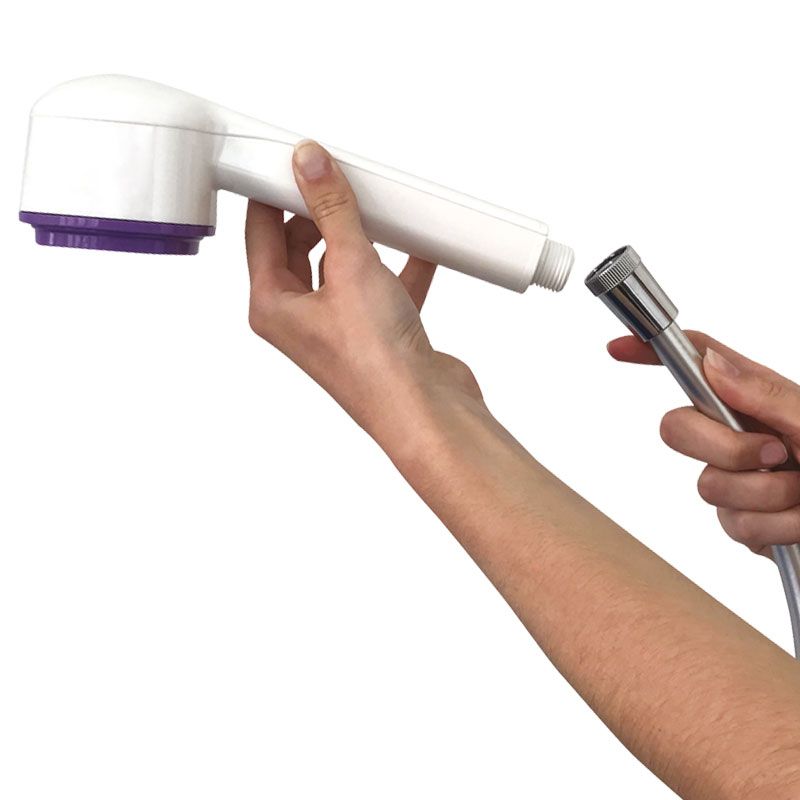

Rapid installation with no tools required

Characteristics

TECHNICAL CHARACTERISTICS

FILT’RAY 2G 3 month shower filter

Ref. AT030714
Supply M1/2"
Technology Point-of-use filtration

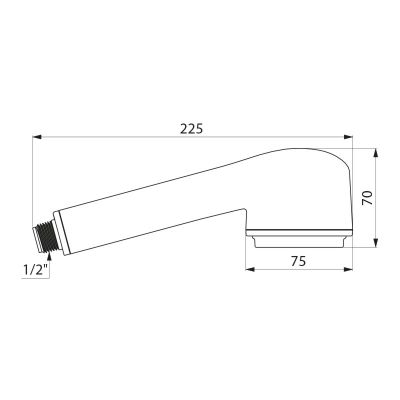

Height 70mm
Length 225mm
Flow rate 11.9 lpm at 3 bar and 4.5 lpm at 1 bar
Lifespan 3 months
Certificates ACS Logo Watermark Logo CE Logo WRAS

Downloads

DOWNLOADS

FILT’RAY 2G 3 month shower filter

Ref. AT030714

To download one or several documents linked to this product, please select the type of file you require :

VARIANTS

AT030724 Non-sterile

VARIANTS

AT030724 Non-sterile
